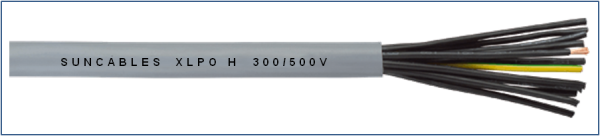

XLPO H 300/500V

Standard References

•   BS EN 50288-7

Special Features

• Space saving construction
• Good fire retardance
• Low halogen content
• Excellent electrical properties
• Good oil resistance
• Low smoke and toxicity

Application Range

• Industrial machinery and air conditioning systems
• For general purpose installations in dry environment subjected to low mechanical loads
• Areas where human or animals are present
• Tunnels and transportation
• Suitable for outdoor installations

Technical Data

• Temperature Range : -15°C to +90°C
• Nominal Voltage : U0/U 300 / 500V
• Test Voltage : 1500 V
• Insulation Resistance : min. 200 Mohm x km
• Min. Bending Radius : 8 x cable dia
• Short circuit temperature : Upto 250°C
•  Flame retardance : As per IEC 60332-1 (self extinguishing)

NOTE :

• G – with GN-YE protective core
•  X – without protective core
