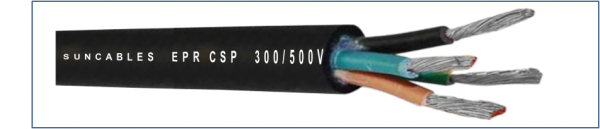

EPR CSP 300/500V

Cable Structure

  • Class 5 tinned copper conductor as per IEC 60228 and IS 8130
  • Polyester taped conductor
  • EPR Insulation
  • Cores twisted
  • CSP outer sheath, black

Standard References

  • BS EN 50525-2-21

Special Features

  • Low bend diameter
  • Highly flexible
  • Excellent electrical properties
  • Good oil resistance
  • Higher temperature and short circuit temperature rating
  • Low temperature performance
  • Improved thermal ageing life

Application Range

  • Industrial machinery
  • For general purpose installations in dry or wet environment subjected to low mechanical loads
  • Suitable for areas with oil vapours at room temperature
  • Areas with frequent twists and turns where straight cable laying is not possible

Technical Data

  • Temperature Range : -30°C to +90°C
  • Nominal Voltage : U0/U 300/500V
  • Test Voltage : 1500 V
  • Insulation Resistance : min. 200 Mohm x km
  • Min. Bending Radius : 6 x cable dia
  • Short circuit temperature : Upto 250°C
  •  Flame retardance : As per IEC 60332-1 (self extinguishing)



NOTE :

  • G – with GN-YE protective core
  •  X – without protective core
